Compare Barudan Models

Multi-head Models from 4 to 8 heads with 15 needles per head

Absolutely!   -      That’s   one   of   the   great   advantages   of   Barudan.      Once   you   know   how   to   run   a   single head Barudan machine then a multi-head machine is easy as pie. Most   of   our   customers   started   with   a   small   Barudan   machine   but   then   found   that   their   business   grew   quickly and they needed more production and reduced cost per logo.

“

I’m

getting

really

busy

so

I’ll

sell

my

1

head

and

buy

a

bigger

multi-

head

machine

”







You

wouldn’t

be

alone

if

you

thought

that

was

a

good

plan

but

in

the

embroidery

business ….. this rarely happens.    Let me explain why……

It’s   because   just   about   every   embroidery   business   needs   at   least   one   single   head   machine   because   it   is   the perfect   size   for   both   small   orders   and   for   samples.         You’d   be   throwing   money   away   if   you   were   to   use   a   multi- head machine for running small quantities.   So   whether   you   choose   a   single   head   Barudan   with   15   needles   or   a   multi-head,   high   production   model,   you   can rest assured that the quality and reliability are never compromised.

Every Barudan Machine Is Hand-Built & Thoroughly Tested

They   are   designed   to   be   run   for   up   to   24/7.         The   question   is..….Can   you   keep   up   with   your Barudan? All   internal   mechanical   parts   and   electronic   control   systems   are   made   to   the   same   very   high   standards.   In   fact many sewing parts are interchangeable between the models. The   operating   controls   are   the   same,   so   operators   can   move   easily   from   one   machine   to   another   without additional training

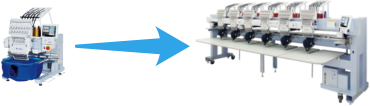

Can I Start Small And Grow My Business With Barudan?

BEXT S1501 CA11 - Compact Single Head

BEKT S1501 CB111 - Large Field Single Head

A Double set of Garment Hoops For Every Head
Main features * Up to 1,200 s.p.m * 15 needles * 250 x 400 embroidery area * 100 design internal memory * 2 x USB ports * 1 x LAN port Hoops included: 2 x 12cm round 2 x 15cm round 2 x 240 x 240 2 x 300 x 430 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops
Specifications 240 volts 1 Ph Width = 780 mm Depth = 690 mm (without table) Height = 960 mm (without stand) Weight = 73Kgs Options * Machine stand * Flat table and sash frame * Wilcom embroidery software * Pocket embroidery hoop * Mighty Magnetic hoops
Main features * Up to 1,300 s.p.m * 15 needles * 360 x 500 embroidery area * 100 design memory * 2 x USB ports * 1 x LAN port * Industrial strength stand Hoops included: 2 x 12cm round 2 x 15cm round 2 x 18cm round 2 x 240 x 240 2 x 330 x 438 2 x 380 x 438 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops
Specifications 240 volts 1 Ph Width = 845 mm Depth = 795 mm (without table) Height = 935 mm (without stand) Weight = 96 Kgs Options * Flat table and sash frame * Wilcom embroidery software * Pocket embroidery hoop * Mighty Magnetic hoops
1 x Cap Driver and 2 Cap Hoops Per Head + Loading Jig

Multi-head Models from 12 to 20 heads with 15 needles per head

One hoop in the machine and one extra to get the next garment hooped and ready while the machine is running.

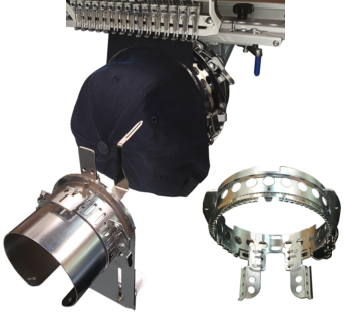

Designed especially for best quality and maximum design size on caps. Now with Barudan’s quick release mechanism (no tools required)
Embroidery Source P/L 2020
Colin Hargreaves / William Hargreaves p:  021 394 357
New Zealand
NSW & ACT Rob Stras p: 0432 555 845 Jayden Cormick p: 0432 521 154
QLD Richard Turner p:  0439 788 066
WA Jon Hawkins p:  0418 918 378
Sales & Technical Support
p: 1800 137 670 or 03 9499 9492
Opening hours Mon to Friday       8:30am - 5:00pm
Melbourne Showroom & Warehouse

VIC, TAS, NT

Gary Busst

p: 0417 118 758

Steven McGarry

p: 0417 391 756

Steve Walsh

p: 0401 429 389

SA Steven McGarry p: 0417 391 576
205 Fulham Rd,  Fairfield 3078,  Victoria

Hoops Supplied

(Hoop sizes may vary between different models)

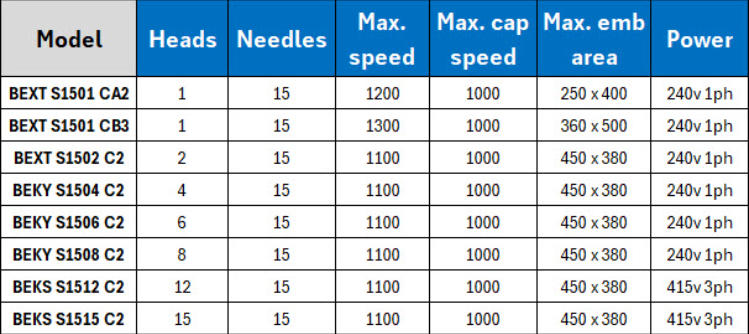

Compare The Different Barudan Models
Multi-head Models from 4 to 8 heads with 15 needles per head
Absolutely!   -   That’s   one   of   the   great   advantages   of   Barudan.     If   you   know   how   to   run   a   single   head   machine   then   a   multi- head machine is easy. Most   of   our   customers   started   with   a   small   Barudan   machine   but then   found   that   their   business   grew   quickly   and   they   needed   more production and reduced cost per logo.   “ I’ll sell my 1 head Barudan and buy a bigger machine ”   Now   that   sounds   like   a   sensible   plan,   but   in   the   embroidery service business ….. this rarely happens. That’s   because   every   embroidery   business   needs   at   least one   single   head   machine.         A   single   head   machine   is   the perfect   size   for   both   small   orders   and   for   samples.      You’d   be throwing   money   away   if   you   use   a   multi-head   machine   for running small quantities.   So   whether   you   choose   a   single   head   Barudan   or   a   multi- head,    model,    you    can    rest    assured    that    the    quality    and reliability are never compromised. Every Barudan machine is designed and built to be run 24/7 The question is….Can you keep up with your Barudan? All   internal,   mechanical   parts   and   electronic   control   systems are   made   to   the   same   very   high   standards.   In   fact   many sewing parts are interchangeable between the models. The   operating   controls   are   the   same,   so   operators   can   move easily    from    one    machine    to    another    without    additional training
Can I Start Small And Grow My Business With Barudan?
BEXT S1501 CA11 - Compact Single Head
BEKT S1501 CB111 - Large Field Single Head
Double sets of Garment Hoops
Main features * Up to 1,200 s.p.m * 15 needles * 250 x 400 embroidery area * 100 design internal memory * 2 x USB ports * 1 x LAN port Hoops included: 2 x 12cm round 2 x 15cm round 2 x 240 x 240 2 x 300 x 430 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops
Specifications 240 volts 1 Ph Width = 780 mm Depth = 690 mm (without table) Height = 960 mm (without stand) Weight = 73Kgs Options * Machine stand * Flat table and sash frame * Wilcom embroidery software * Pocket embroidery hoop * Mighty Magnetic hoops
Main features * Up to 1,300 s.p.m * 15 needles * 360 x 500 embroidery area * 100 design memory * 2 x USB ports * 1 x LAN port * Industrial strength stand Hoops included: 2 x 12cm round 2 x 15cm round 2 x 18cm round 2 x 240 x 240 2 x 330 x 438 2 x 380 x 438 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops
Specifications 240 volts 1 Ph Width = 845 mm Depth = 795 mm (without table) Height = 935 mm (without stand) Weight = 96 Kgs Options * Flat table and sash frame * Wilcom embroidery software * Pocket embroidery hoop * Mighty Magnetic hoops
Quick Change Cap Hoops & Driver
Multi-head Models from 12 to 20 heads with 15 needles per head
One hoop in the machine and one extra to get the next garment hooped and ready while the machine is running.
Designed especially for best quality and maximum design size on caps. Now with Barudan’s quick release mechanism (no tools required)
